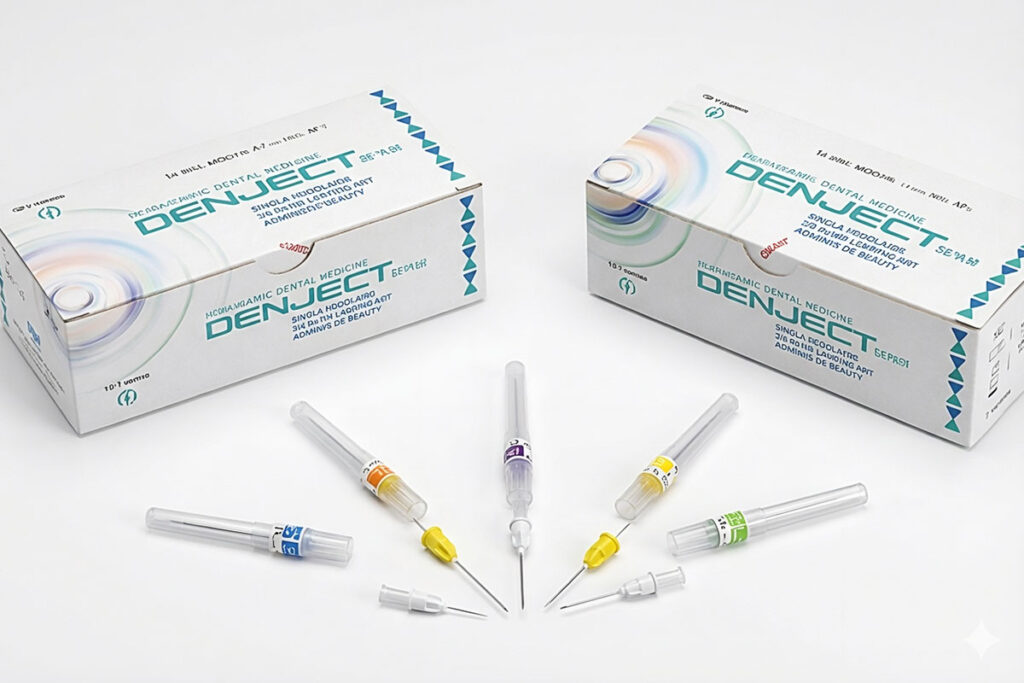

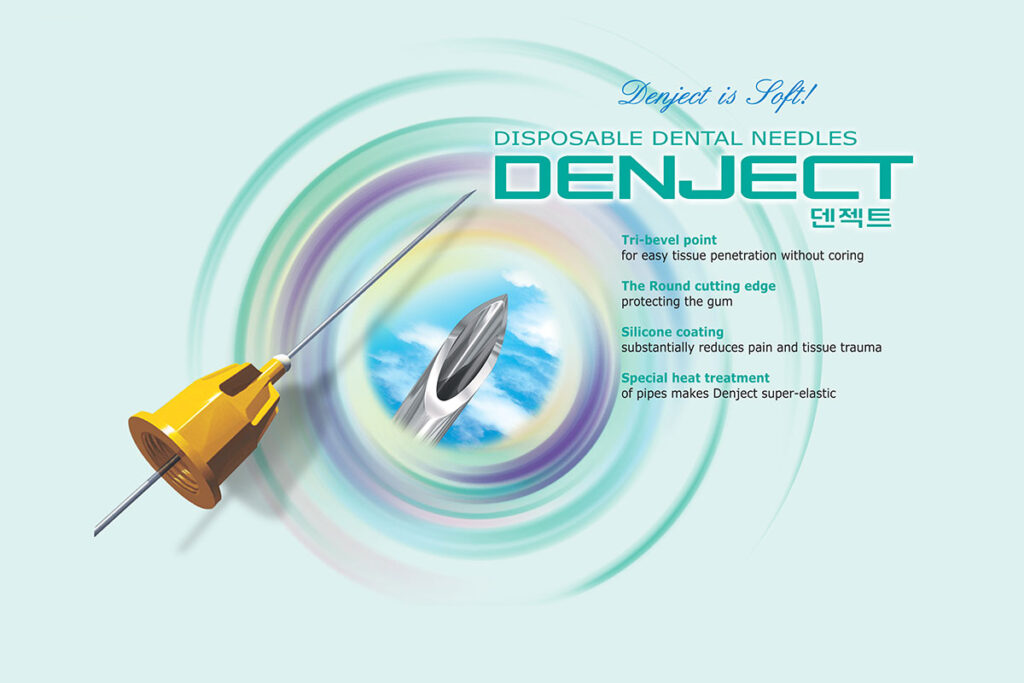

Disposable Dental Needle

Denject

덴젝트

1. Feature

Tri-bevel point for easy tissue penetration without coring
Round cutting edge protecting the gum
Silicone coating substantially reduces pain and tissue trauma
Special heat treatment of pipes makes Denject super-elastic

2. Product Specification

Description	Size
27G XXLong	27Gx38mm(0.41x38mm)
27G XLong	27Gx35mm(0.41x35mm)
27G Long	27Gx30mm(0.41x30mm)
27G Medium	27Gx25mm(0.41x25mm)
27G Short	27Gx21mm(0.41x21mm)
30G Long	30Gx25mm(0.31x25mm)
30G Short	30Gx21mm(0.31x21mm)
30G x.short	30Gx16mm(0.31x16mm)
30G xx.short	30Gx12mm(0.31x12mm)

3. Denject, thinwall tubes/pipes are used to facilitate injection.

For 27-gauge thin-walled tubes/pipes, the outer diameter is 0.4mm, but the inner diameter is 0.241mm, which is wider than the 0.181mm for normal wall, allowing for easy injection without applying excessive force.

Similarly, for 30-gauge thin-walled, the outer diameter is 0.3mm, but the inner diameter is 0.165mm, which is wider than the 0.133mm for normal wall, allowing for easy injection without applying excessive force.

Tube/pipe specification table (ISO 9626_2016)

Dimensions in millimeters

Designated metric size	Gauge size ¹⁾	Range of outside diameters		Inside diameter of tubing
Designated metric size	Gauge size ¹⁾	min.	max.	Normal- walled min.	Thin-walled min.	Extra-thin- walled min.
0,2	33	0,203	0,216	0,089	0,105	—
0,23	32	0,229	0,241	0,089	0,105	—
0,25	31	0,254	0,267	0,114	0,125	—
0,3	30	0,298	0,320	0,133	0,165	—
0,33	29	0,324	0,351	0,133	0,190	—
0,36	28	0,349	0,370	0,133	0,190	—
0,4	27	0,400	0,420	0,184	0,241	—
0,45	26	0,440	0,470	0,232	0,292	—
0,5	25	0,500	0,530	0,232	0,292	—
0,55	24	0,550	0,580	0,280	0,343	—
0,6	23	0,600	0,673	0,317	0,370	0,460
0,7	22	0,698	0,730	0,390	0,440	0,522
0,8	21	0,800	0,830	0,490	0,547	0,610
0,9	20	0,860	0,920	0,560	0,635	0,687
1,1	19	1,030	1,100	0,648	0,750	0,850
1,2	18	1,200	1,300	0,790	0,910	1,041
1,4	17	1,400	1,510	0,950	1,156	1,244
1,6	16	1,600	1,690	1,100	1,283	1,390
1,8	15	1,750	1,900	1,300	1,460	1,560
2,1	14	1,950	2,150	1,500	1,600	1,727
2,4	13	2,300	2,500	1,700	1,956	—
2,7	12	2,650	2,850	1,950	2,235	—
3,0	11	2,950	3,150	2,200	2,464	—
3,4	10	3,300	3,500	2,500	2,819	—

1) For information only.

Designated metric size (mm)	Gauge	OD_MIN (mm)	OD_MAX (mm)	Wall	ID_MIN (mm)
0.18	34	0.178	0.191	RW	0.064
				TW	0.091
				ETW	0.105
0.20	33	0.203	0.216	RW	0.089
				TW	0.105
				ETW	0.125
0.23	32	0.229	0.241	RW	0.089
				TW	0.105
				ETW	0.125
				UTW	0.146
0.25	31	0.254	0.267	RW	0.114
				TW	0.125
				ETW	0.146
				UTW	0.176
0.30	30	0.298	0.320	RW	0.133
				TW	0.165
				ETW	0.190
				UTW	0.240
0.33	29	0.324	0.351	RW	0.133
				TW	0.190
				ETW	0.240
				UTW	0.265
0.36	28	0.349	0.370	RW	0.133
0.36	28	0.349	0.370	TW	0.190
0.40	27	0.400	0.420	RW	0.184
0.40	27	0.400	0.420	TW	0.241
0.45	26	0.440	0.470	RW	0.232
0.45	26	0.440	0.470	TW	0.292
0.50	25	0.500	0.530	RW	0.232
0.50	25	0.500	0.530	TW	0.292
0.55	24	0.550	0.580	RW	0.280
0.55	24	0.550	0.580	TW	0.343
0.60	23	0.600	0.673	RW	0.317
				TW	0.370
				ETW	0.460
0.70	22	0.698	0.730	RW	0.390
				TW	0.440
				ETW	0.522
0.80	21	0.800	0.830	RW	0.490
				TW	0.547
				ETW	0.610
				UTW	0.645
0.90	20	0.860	0.920	RW	0.560
				TW	0.635
				ETW	0.687
				UTW	0.713
1.10	19	1.030	1.100	RW	0.648
				TW	0.750
				ETW	0.850
				UTW	0.891
1.20	18	1.200	1.300	RW	0.790
				TW	0.910
				ETW	1.041
1.40	17	1.400	1.510	RW	0.950
				TW	1.156
				ETW	1.244
				UTW	1.276
1.60	16	1.600	1.690	RW	1.100
				TW	1.283
				ETW	1.390
1.80	15	1.750	1.900	RW	1.300
				TW	1.460
				ETW	1.560
2.10	14	1.950	2.150	RW	1.500
				TW	1.600
				ETW	1.727
2.40	13	2.300	2.500	RW	1.700
2.40	13	2.300	2.500	TW	1.956
2.70	12	2.650	2.850	RW	1.950
2.70	12	2.650	2.850	TW	2.235

Designated metric size (mm)	Gauge	OD_MIN (mm)	OD_MAX (mm)	Wall	ID_MIN (mm)
0.18	34	0.178	0.191	RW	0.064
				TW	0.091
				ETW	0.105
0.20	33	0.203	0.216	RW	0.089
				TW	0.105
				ETW	0.125
0.23	32	0.229	0.241	RW	0.089
				TW	0.105
				ETW	0.125
				UTW	0.146
0.25	31	0.254	0.267	RW	0.114
				TW	0.125
				ETW	0.146
				UTW	0.176
0.30	30	0.298	0.320	RW	0.133
				TW	0.165
				ETW	0.190
				UTW	0.240
0.33	29	0.324	0.351	RW	0.133
				TW	0.190
				ETW	0.240
				UTW	0.265
0.36	28	0.349	0.370	RW	0.133
0.36	28	0.349	0.370	TW	0.190
0.40	27	0.400	0.420	RW	0.184
0.40	27	0.400	0.420	TW	0.241
0.45	26	0.440	0.470	RW	0.232
0.45	26	0.440	0.470	TW	0.292
0.50	25	0.500	0.530	RW	0.232
0.50	25	0.500	0.530	TW	0.292
0.55	24	0.550	0.580	RW	0.280
0.55	24	0.550	0.580	TW	0.343
0.60	23	0.600	0.673	RW	0.317
				TW	0.370
				ETW	0.460

Designated metric size (mm)	Gauge	OD_MIN (mm)	OD_MAX (mm)	Wall	ID_MIN (mm)
0.60	23	0.600	0.673	RW	0.317
				TW	0.370
				ETW	0.460
0.70	22	0.698	0.730	RW	0.390
				TW	0.440
				ETW	0.522
0.80	21	0.800	0.830	RW	0.490
				TW	0.547
				ETW	0.610
				UTW	0.645
0.90	20	0.860	0.920	RW	0.560
				TW	0.635
				ETW	0.687
				UTW	0.713
1.10	19	1.030	1.100	RW	0.648
				TW	0.750
				ETW	0.850
				UTW	0.891
1.20	18	1.200	1.300	RW	0.790
				TW	0.910
				ETW	1.041
1.40	17	1.400	1.510	RW	0.950
				TW	1.156
				ETW	1.244
				UTW	1.276
1.60	16	1.600	1.690	RW	1.100
				TW	1.283
				ETW	1.390
1.80	15	1.750	1.900	RW	1.300
				TW	1.460
				ETW	1.560
2.10	14	1.950	2.150	RW	1.500
				TW	1.600
				ETW	1.727
2.40	13	2.300	2.500	RW	1.700
2.40	13	2.300	2.500	TW	1.956
2.70	12	2.650	2.850	RW	1.950
2.70	12	2.650	2.850	TW	2.235

Product Specification (ISO 9626_2016)(tube/pipe specification table)

	Regular-walled tubing			Thin-walled tubing			Extra-thin walled tubing			Ultra-thin walled tubing
Designated metric size	Span mm ±0.1	Bending force N ±0.1	Maximum deflection mm	Span mm ±0.1	Bending force N ±0.1	Maximum deflection mm	Span mm ±0.1	Bending force N ±0.1	Maximum deflection mm	Span mm ±0.1	Bending force N ±0.1	Maximum deflection mm
0.18	a	a	a	a	a	a	a	a	a	a	a	a
0.2	5.0	0.6	0.25	5.0	0.6	0.27	a	a	a	a	a	a
0.23	5.0	0.9	0.20	5.0	0.9	0.20	5.0	0.9	0.22	5.0	0.9	0.25
0.25	5.0	1.1	0.17	5.0	1.1	0.18	5.0	1.1	0.21	5.0	1.1	0.24
0.3	5.0	1.3	0.11	5.0	1.3	0.11	5.0	1.3	0.16	5.0	1.3	0.20
0.33	5.0	1.6	0.09	5.0	1.6	0.12	5.0	1.6	0.17	5.0	1.6	0.19
0.36	5.0	3.6	0.14	5.0	3.6	0.14	a	a	a	a	a	a
0.4	9.5	2.7	0.52	7.5	3.4	0.34	a	a	a	a	a	a
0.45	10.0	3.1	0.45	10.0	3.1	0.51	a	a	a	a	a	a
0.5	10.0	5.1	0.37	10.0	5.1	0.40	a	a	a	a	a	a
0.55	10.0	6.4	0.34	10.0	6.4	0.36	a	a	a	a	a	a
0.6	12.5	4.8	0.33	12.5	4.8	0.43	12.5	4.8	0.51	a	a	a
0.7	15.0	6.7	0.42	15.0	6.7	0.52	15.0	6.7	0.60	a	a	a
0.8	15.0	9.6	0.38	15.0	9.6	0.45	15.0	9.6	0.51	a	a	a
0.9	17.5	9.0	0.48	17.5	9.0	0.56	17.5	9.0	0.60	a	a	a
1.1	25.0	9.7	0.71	25.0	9.7	0.97	25.0	9.7	1.08	a	a	a
1.2	25.0	12.2	0.51	25.0	12.2	0.81	a	a	a	a	a	a
1.4	25.0	16.6	0.46	25.0	16.6	0.68	25.0	16.6	0.82	a	a	a
1.6	25.0	22.0	0.25	25.0	22.0	0.30	25.0	22.0	0.34	a	a	a
1.8	25.0	25.0	0.35	25.0	25.0	0.45	a	a	a	a	a	a
2.1	30.0	40.0	0.40	30.0	40.0	0.50	a	a	a	a	a	a
2.4	40.0	40.0	0.38	40.0	40.0	0.65	a	a	a	a	a	a
2.7	40.0	50.0	0.31	40.0	50.0	0.45	a	a	a	a	a	a
3	50.0	50.0	0.41	50.0	50.0	0.55	a	a	a	a	a	a
3.4	50.0	60.0	0.32	50.0	60.0	0.46	a	a	a	a	a	a

a: No data are available; therefore, this International Standard does not specify stiffness properties for these sizes of tubing.

Dimensions in millimeters

Designated metric size	Gauge size ¹⁾	Range of outside diameters		Inside diameter of tubing
Designated metric size	Gauge size ¹⁾	min.	max.	Normal- walled min.	Thin-walled min.	Extra-thin- walled min.
0,2	33	0,203	0,216	0,089	0,105	—
0,23	32	0,229	0,241	0,089	0,105	—
0,25	31	0,254	0,267	0,114	0,125	—
0,3	30	0,298	0,320	0,133	0,165	—
0,33	29	0,324	0,351	0,133	0,190	—
0,36	28	0,349	0,370	0,133	0,190	—
0,4	27	0,400	0,420	0,184	0,241	—
0,45	26	0,440	0,470	0,232	0,292	—
0,5	25	0,500	0,530	0,232	0,292	—
0,55	24	0,550	0,580	0,280	0,343	—
0,6	23	0,600	0,673	0,317	0,370	0,460
0,7	22	0,698	0,730	0,390	0,440	0,522
0,8	21	0,800	0,830	0,490	0,547	0,610
0,9	20	0,860	0,920	0,560	0,635	0,687
1,1	19	1,030	1,100	0,648	0,750	0,850
1,2	18	1,200	1,300	0,790	0,910	1,041
1,4	17	1,400	1,510	0,950	1,156	1,244
1,6	16	1,600	1,690	1,100	1,283	1,390
1,8	15	1,750	1,900	1,300	1,460	1,560
2,1	14	1,950	2,150	1,500	1,600	1,727
2,4	13	2,300	2,500	1,700	1,956	—
2,7	12	2,650	2,850	1,950	2,235	—
3,0	11	2,950	3,150	2,200	2,464	—
3,4	10	3,300	3,500	2,500	2,819	—

1) For information only.

Designated metric size (mm)	Gauge	OD_MIN (mm)	OD_MAX (mm)	Wall	ID_MIN (mm)
0.18	34	0.178	0.191	RW	0.064
				TW	0.091
				ETW	0.105
0.20	33	0.203	0.216	RW	0.089
				TW	0.105
				ETW	0.125
0.23	32	0.229	0.241	RW	0.089
				TW	0.105
				ETW	0.125
				UTW	0.146
0.25	31	0.254	0.267	RW	0.114
				TW	0.125
				ETW	0.146
				UTW	0.176
0.30	30	0.298	0.320	RW	0.133
				TW	0.165
				ETW	0.190
				UTW	0.240
0.33	29	0.324	0.351	RW	0.133
				TW	0.190
				ETW	0.240
				UTW	0.265
0.36	28	0.349	0.370	RW	0.133
0.36	28	0.349	0.370	TW	0.190
0.40	27	0.400	0.420	RW	0.184
0.40	27	0.400	0.420	TW	0.241
0.45	26	0.440	0.470	RW	0.232
0.45	26	0.440	0.470	TW	0.292
0.50	25	0.500	0.530	RW	0.232
0.50	25	0.500	0.530	TW	0.292
0.55	24	0.550	0.580	RW	0.280
0.55	24	0.550	0.580	TW	0.343
0.60	23	0.600	0.673	RW	0.317
				TW	0.370
				ETW	0.460
0.70	22	0.698	0.730	RW	0.390
				TW	0.440
				ETW	0.522
0.80	21	0.800	0.830	RW	0.490
				TW	0.547
				ETW	0.610
				UTW	0.645
0.90	20	0.860	0.920	RW	0.560
				TW	0.635
				ETW	0.687
				UTW	0.713
1.10	19	1.030	1.100	RW	0.648
				TW	0.750
				ETW	0.850
				UTW	0.891
1.20	18	1.200	1.300	RW	0.790
				TW	0.910
				ETW	1.041
1.40	17	1.400	1.510	RW	0.950
				TW	1.156
				ETW	1.244
				UTW	1.276
1.60	16	1.600	1.690	RW	1.100
				TW	1.283
				ETW	1.390
1.80	15	1.750	1.900	RW	1.300
				TW	1.460
				ETW	1.560
2.10	14	1.950	2.150	RW	1.500
				TW	1.600
				ETW	1.727
2.40	13	2.300	2.500	RW	1.700
2.40	13	2.300	2.500	TW	1.956
2.70	12	2.650	2.850	RW	1.950
2.70	12	2.650	2.850	TW	2.235

Designated metric size (mm)	Gauge	OD_MIN (mm)	OD_MAX (mm)	Wall	ID_MIN (mm)
0.18	34	0.178	0.191	RW	0.064
				TW	0.091
				ETW	0.105
0.20	33	0.203	0.216	RW	0.089
				TW	0.105
				ETW	0.125
0.23	32	0.229	0.241	RW	0.089
				TW	0.105
				ETW	0.125
				UTW	0.146
0.25	31	0.254	0.267	RW	0.114
				TW	0.125
				ETW	0.146
				UTW	0.176
0.30	30	0.298	0.320	RW	0.133
				TW	0.165
				ETW	0.190
				UTW	0.240
0.33	29	0.324	0.351	RW	0.133
				TW	0.190
				ETW	0.240
				UTW	0.265
0.36	28	0.349	0.370	RW	0.133
0.36	28	0.349	0.370	TW	0.190
0.40	27	0.400	0.420	RW	0.184
0.40	27	0.400	0.420	TW	0.241
0.45	26	0.440	0.470	RW	0.232
0.45	26	0.440	0.470	TW	0.292
0.50	25	0.500	0.530	RW	0.232
0.50	25	0.500	0.530	TW	0.292
0.55	24	0.550	0.580	RW	0.280
0.55	24	0.550	0.580	TW	0.343
0.60	23	0.600	0.673	RW	0.317
				TW	0.370
				ETW	0.460

Designated metric size (mm)	Gauge	OD_MIN (mm)	OD_MAX (mm)	Wall	ID_MIN (mm)
0.60	23	0.600	0.673	RW	0.317
				TW	0.370
				ETW	0.460
0.70	22	0.698	0.730	RW	0.390
				TW	0.440
				ETW	0.522
0.80	21	0.800	0.830	RW	0.490
				TW	0.547
				ETW	0.610
				UTW	0.645
0.90	20	0.860	0.920	RW	0.560
				TW	0.635
				ETW	0.687
				UTW	0.713
1.10	19	1.030	1.100	RW	0.648
				TW	0.750
				ETW	0.850
				UTW	0.891
1.20	18	1.200	1.300	RW	0.790
				TW	0.910
				ETW	1.041
1.40	17	1.400	1.510	RW	0.950
				TW	1.156
				ETW	1.244
				UTW	1.276
1.60	16	1.600	1.690	RW	1.100
				TW	1.283
				ETW	1.390
1.80	15	1.750	1.900	RW	1.300
				TW	1.460
				ETW	1.560
2.10	14	1.950	2.150	RW	1.500
				TW	1.600
				ETW	1.727
2.40	13	2.300	2.500	RW	1.700
2.40	13	2.300	2.500	TW	1.956
2.70	12	2.650	2.850	RW	1.950
2.70	12	2.650	2.850	TW	2.235

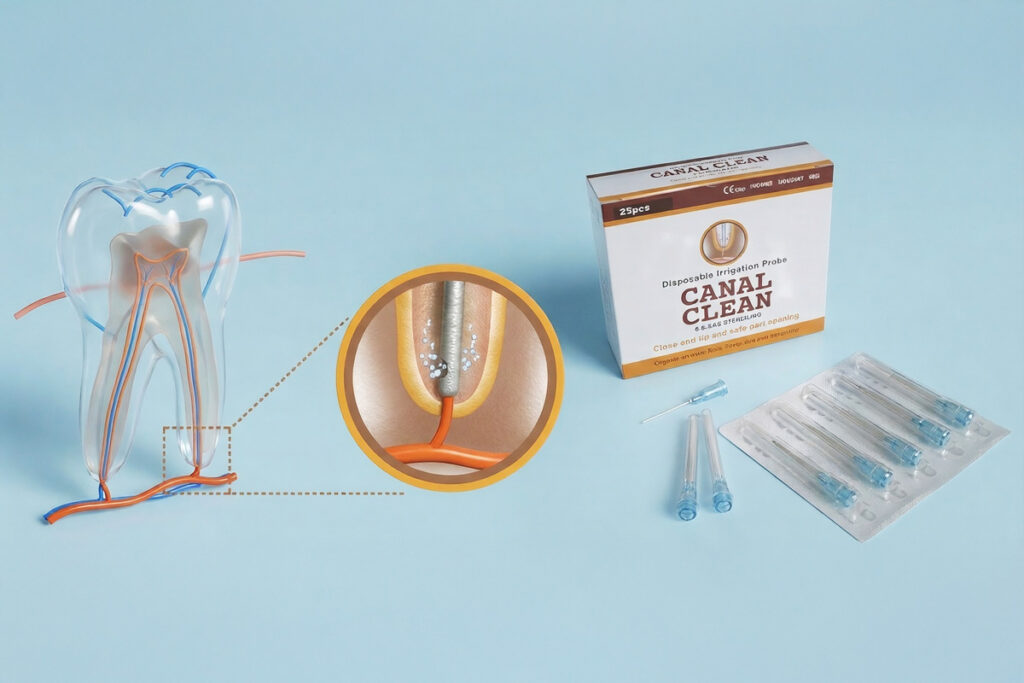

Canal Clean

(Disposable Dental Needle)

1. Feature

Irrigation Probe CANAL CLEAN of Biodent is the very useful product which can irrigate perfectly root canals as well as the gingival sulci.

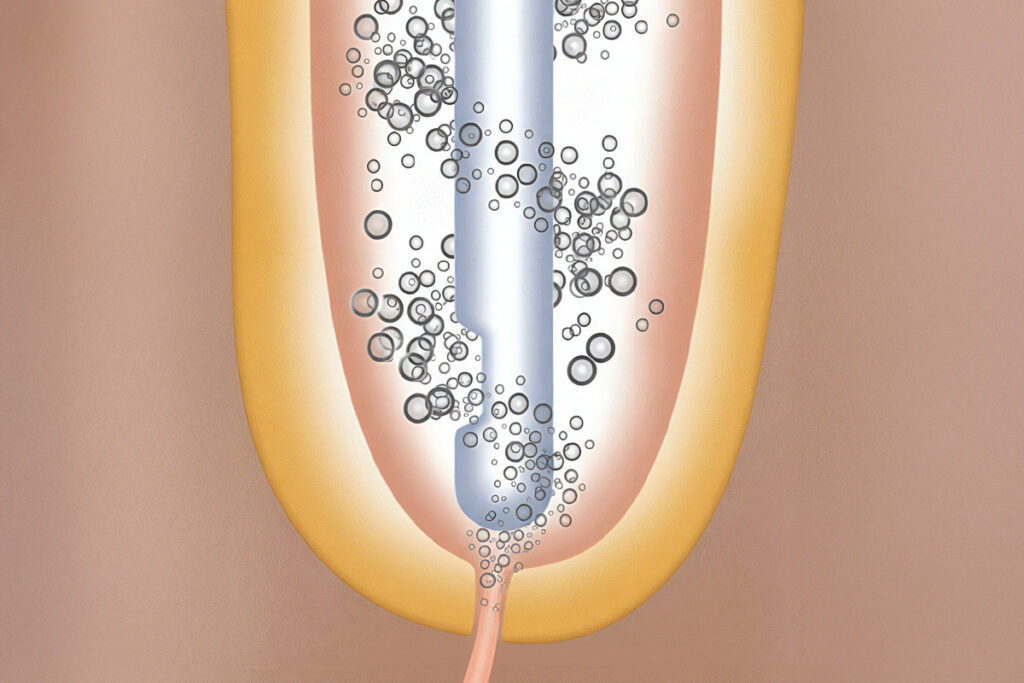

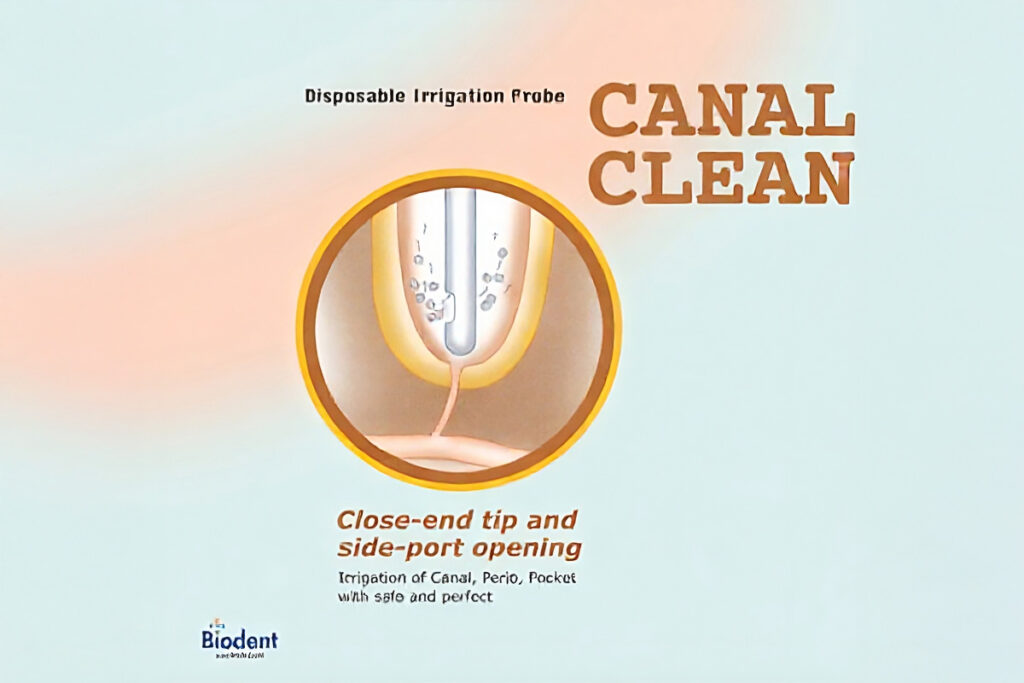

Irrigation Probe CANAL CLEAN has closed end-tips & side-port opening. The passing through the canal orifice of the irrigation solution(NAOCI, saline)can be intercepted with the side-port dispersal.
In case of end-opened irrigation tip which is commonly used, too strong injection of the irrigation solution makes the root end area injury and solution can pierce the root orifice.
As a result of ti, the secondary inflammation or flare-up can be caused by the pollution material. So, Irrigation probe CANNAL CLEAN is able to solve this problems.

2. Product Specification

Description	Color	Size	Root Canal Size
31GCC	Clear White	0.27mm X 25mm	#20
30GCC	Yellow	0.30mm X 25mm	#30
28GCC	Blue-Green	0.36mm X 25mm	#40

3. Instructions for Use

Turm and Fix CANAL CLEAN thightly to the Lure Lock Type Syringe
Fill the irrigation solution in the syringe
Separate the safe cap from the syringe

4. Cautions

Discard the needle after use because this product is sterilized single use Do not re-use the needle which broken the seal regarding as it was used Discard the needle with cap after use

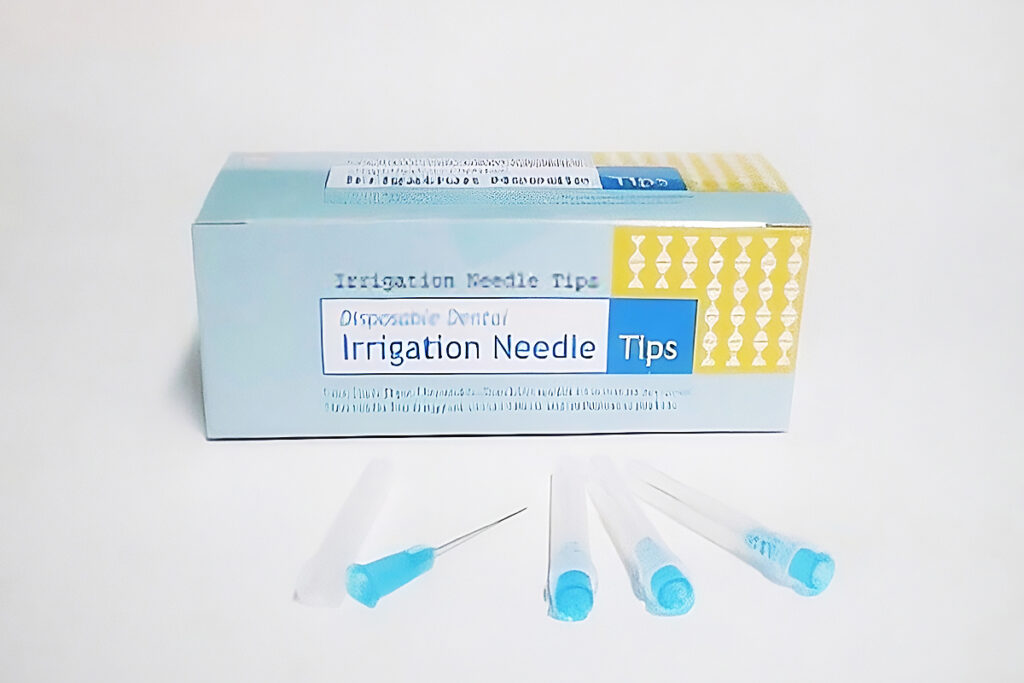

Irrigation Needle Tips

(Disposable Dental Needle)

1. Feature

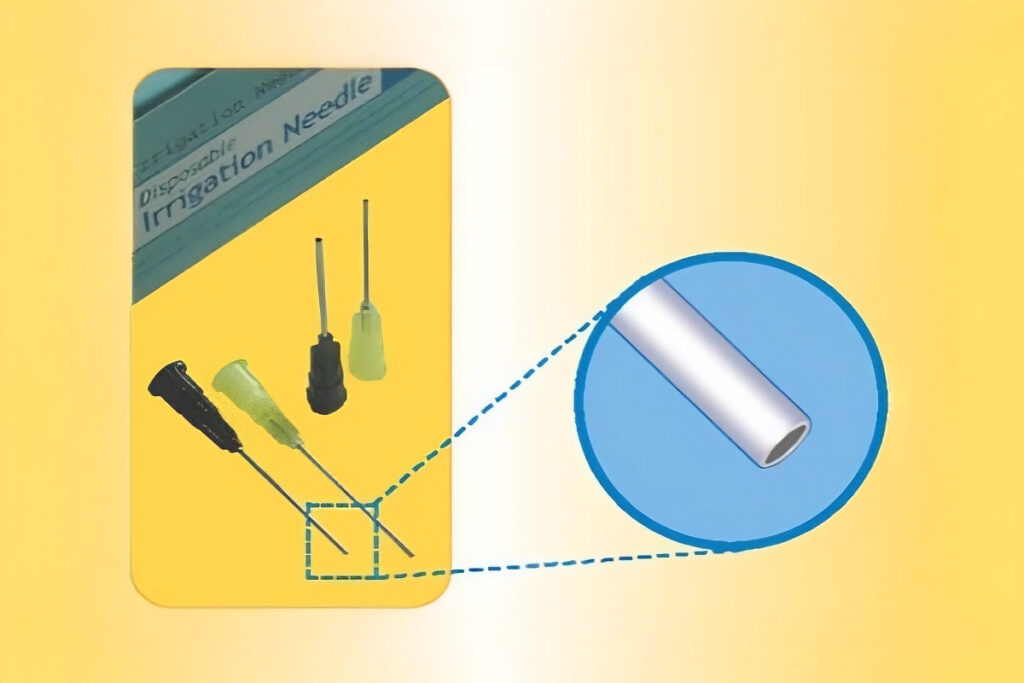

Irrigation Needle Tips of biodent is not sharp because we produce the end tip roundly through the processes Barrel of long time. So, It can prevent secondary injury of affected part. Irrigation Needle Tips of biodent has many sorts of diameter so, you can choice freely in order to be fitted with liquid for using or part for using. Irrigation Needle Tips of biodent can use syringe of lure lock type so, it never comes to by big pressures

2. Product Specification

Description	Color	Size
18G	Pink	1.2mm X 25mm
19G	Cream	1.1mm X 25mm
20G	Yellow	0.9mm X 25mm
22G	Black	0.9mm X 25mm
25G	Orange	0.9mm X 25mm
27G	Medium Gray	0.9mm X 25mm

3. Luer Lock Type

Disposable
Bendable needle to access in any canal
Non sterile
For irrigation of root canals and periodontal pockets

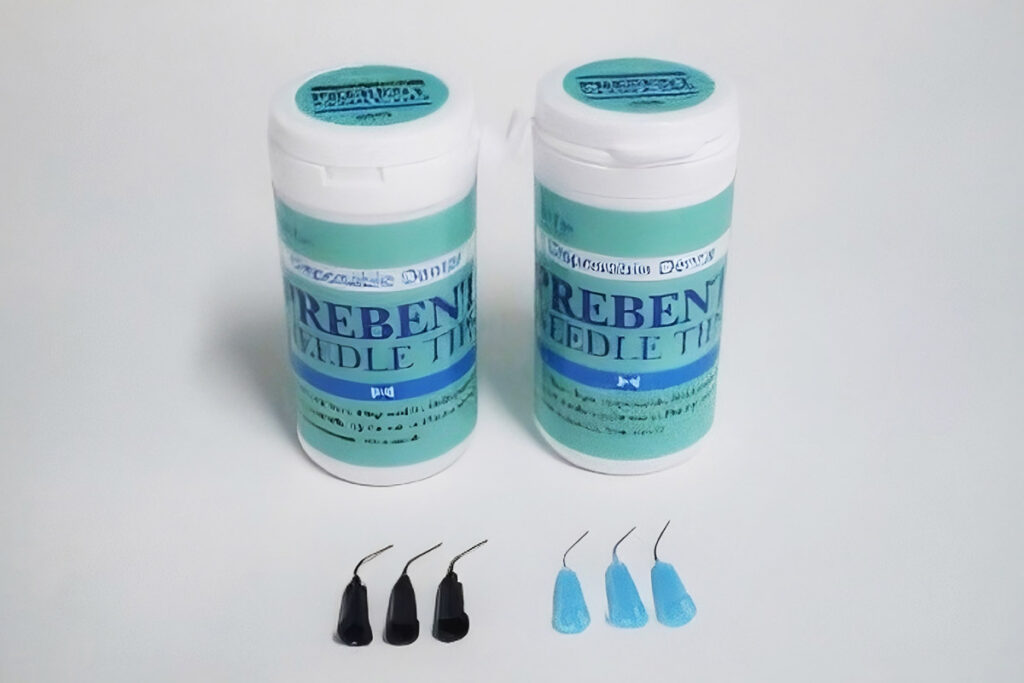

Prebent Needle Tips

(Disposable Dental Needle)

1. Feature

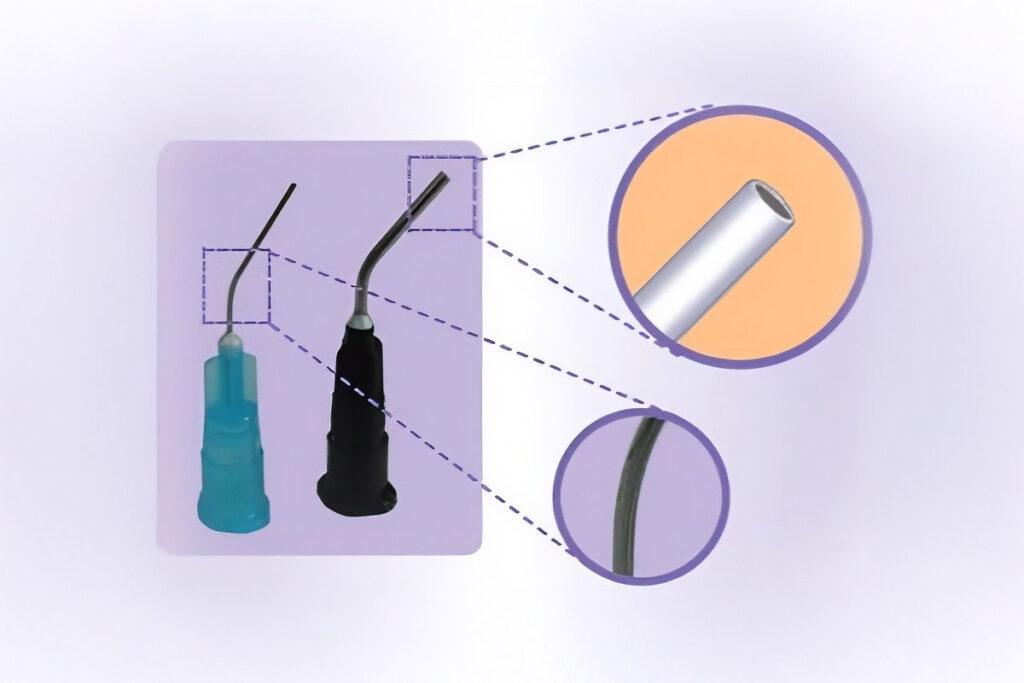

Prebent needle tips of biodent is not sharp because we produce the end tip roundly through the processes barrel of long time. So, It can prevent secondary injury of affected part.
Prebent needle tips of biodent be prebented by regular angle 40° ~ +-5 ° and the prebenting point is prebented roundly in or der not to intercept the pipe
Prebent needle tips of biodent can use syring of lurenge of lurelock type so,it naver comes out by big pressures.

2. Product Specification

Description	Color	Size
18G	Pink	1.2mm X 15mm
20G	Yellow	0.9mm X 15mm
20G	Black	0.9mm X 15mm
22G	Black	0.7mm X 15mm
25G	Blue	0.5mm X 15mm

3. Luer Lock Type

Disposable
Multi-Purpose
Curved needle tips for use in Placing viscous to thin materials
Non-Sterile

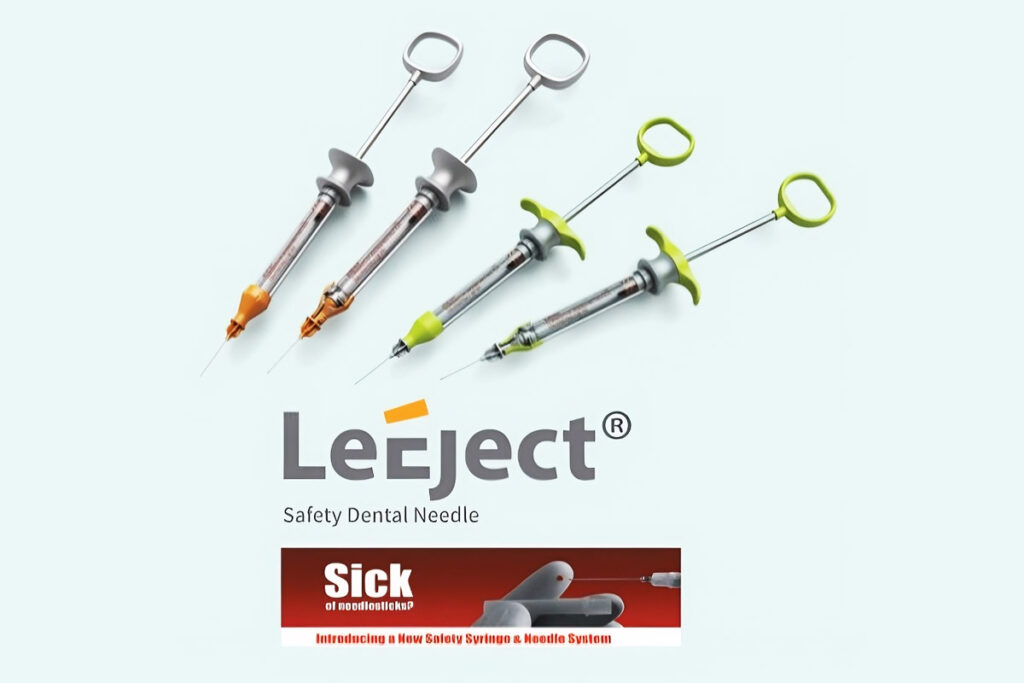

LeEJect

(Disposable Dental Needle)

1. Feature

No need the recap or unscrew contaminated needles.
Self-asrpiration feature is built into the needles.
Safer and faster loading and unloading of needles.

2. ADDITIONAL INFORMATION

Replacement needle quickly slides into housing from the side and fits tightly-no screwing in required.
The used needle falls off from the syringe safely and easily. After removing the used carpule, tiit the syringe and rotate it upside down. The used needle falls from the syringe.
Self-aspirating feature can be added to needles. Dentist only needs to buy new needles and metal housing, which can be used with existing plunger assembly, thumb ring, and carpules.

3. Product Specification

Description	Label color	Size	Syringe	Dimensions
25G / XLong	Gray	25Gx35mm(0.51x35mm)	A	1.8ml
27G / XXLong	Purple	27Gx38mm(0.41x38mm)	A	2.2ml
27G / XLong	Red	27Gx35mm(0.41x35mm)	C,W	1.8ml
27G / Long	Orange	27Gx30mm(0.41x30mm)	C,W	2.2ml
27G / Medium	Brown	27Gx25mm(0.41x25mm)
27G / Short	Yellow	27Gx21mm(0.41x21mm)
30G / Long	Violet	30Gx25mm(0.31x25mm)
30G / Short	Green	30Gx21mm(0.31x21mm)
30G / XShort	Sky Blue	30Gx16mm(0.31x16mm)
30G / XXShort	Blue	30Gx12mm(0.31x12mm)
